Discover how to create an automated inverter configuration by specifying the desired DC/AC ratio and selecting from a range of available options.

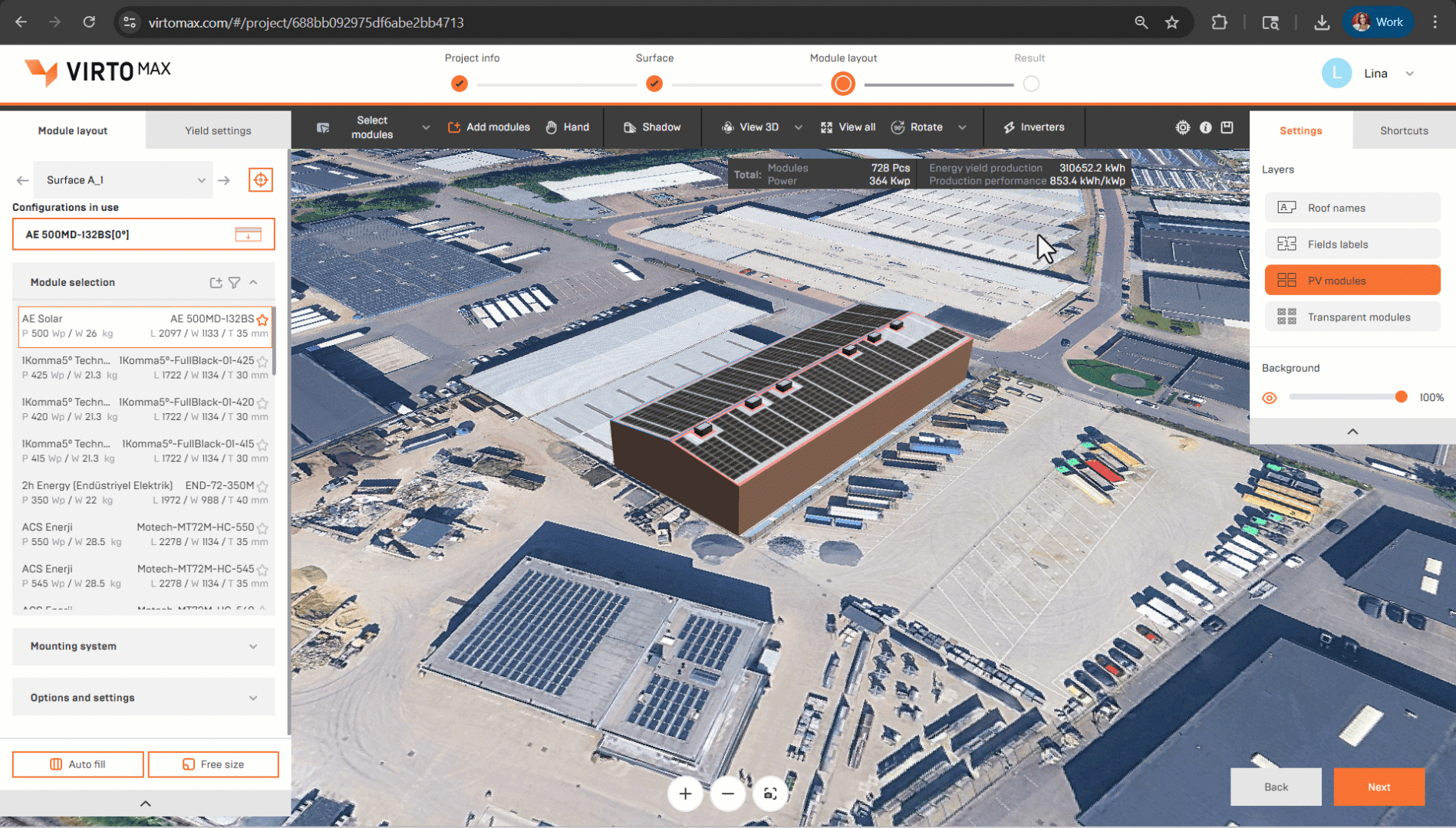

After completing your module layout, you may advance to the Inverters feature.
A new window will appear on the left side of the screen, labeled Inverter Mode. This interface features three sections: The first displays the Panel Groups within your projects, including the number of modules assigned to each group. Next, proceed to the Inverter Selection, where you can choose one or multiple inverter types for your system configuration. Finally, in the Project Criteria section, define your preferences regarding the use of Y-connectors and specify the desired DC/AC ratio range for your system.
Click Continue to view several proposed inverter combinations. You can filter these by highest DC/AC ratio or by lowest quantity. Select the combination that best aligns with your project requirements, then click Done to proceed.

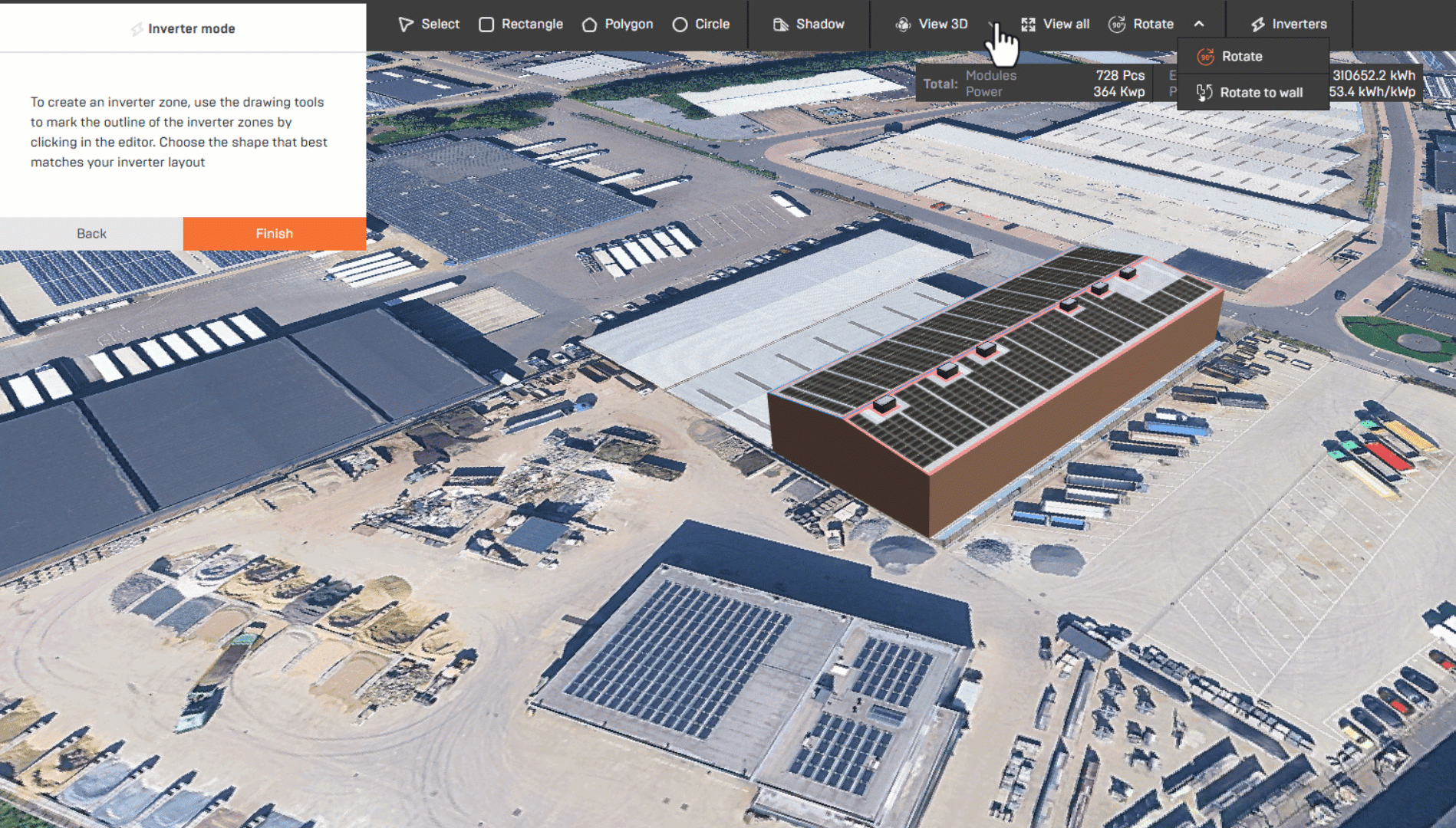

At this stage, you can select either the rectangle or polygon drawing tool to define the designated area for inverter placement. The chosen inverters will then be displayed within the component list.
