Learn the process of transforming your 2D layout into a dynamic 3D layout
If you have a 2D layout created with AutoCAD or BricsCAD, you can transform it into a fully-realized 3D layout using virto.CAD, provided that the layout meets certain criteria.
You can generate the 2D layout from a top-down perspective without concern for the building's height, as the contour panels will automatically be positioned at a default height of zero.
To achieve an identical 3D layout, it is essential that the dimensions of the panels and the spacing between them are either the same or very similar.

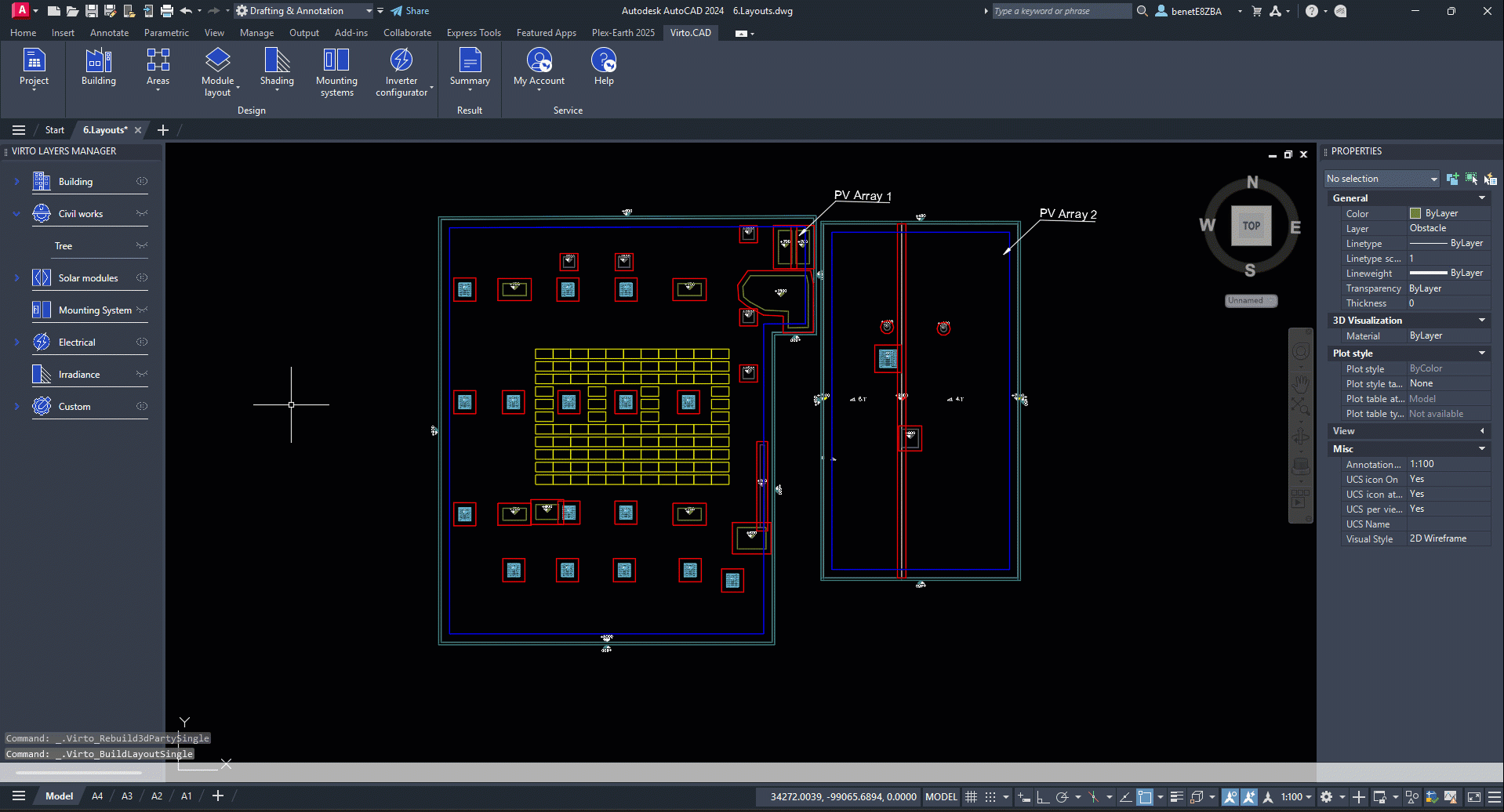

To proceed, select the Rebuild Layout option, choose the relevant module, and adjust the necessary parameters to ensure the layout is accurately transformed into a 3D format.
During this process, you will need to identify and select the specific modules that make up your 2D layout.
If you want to learn how to build a Roof Layout first click here
The process of transitioning from a 2D layout to a 3D layout is seamless and straightforward.
