Once you have completed an irradiation or shading analysis, you can utilize this feature to filter out any values that do not meet the optimal criteria for your project.
Steps
Choose the Shading dropdown and select the option Threshold
A new window will open.
\
Select Irradiance on Roof Surfaces if your analysis pertains to a roof or ground surface. Alternatively, select Irradiance on Solar Modules if your analysis is based directly on the solar modules themselves.
The cutoff value can be specified in either percentage or kWh/m². Please choose the option that you used for the simulation itself.
Then, input the desired Cut-Off Value and choose one or more grids to which you would like to apply this cutoff value.
To finish select the Start button to initiate the process.

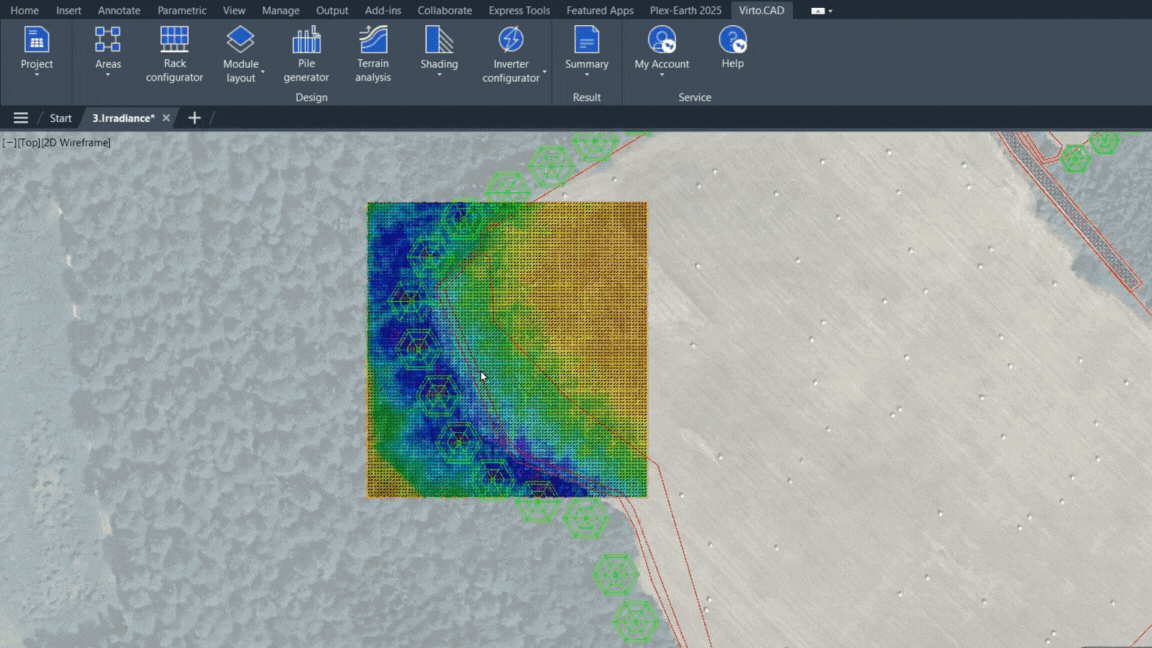

Threshold on Surface

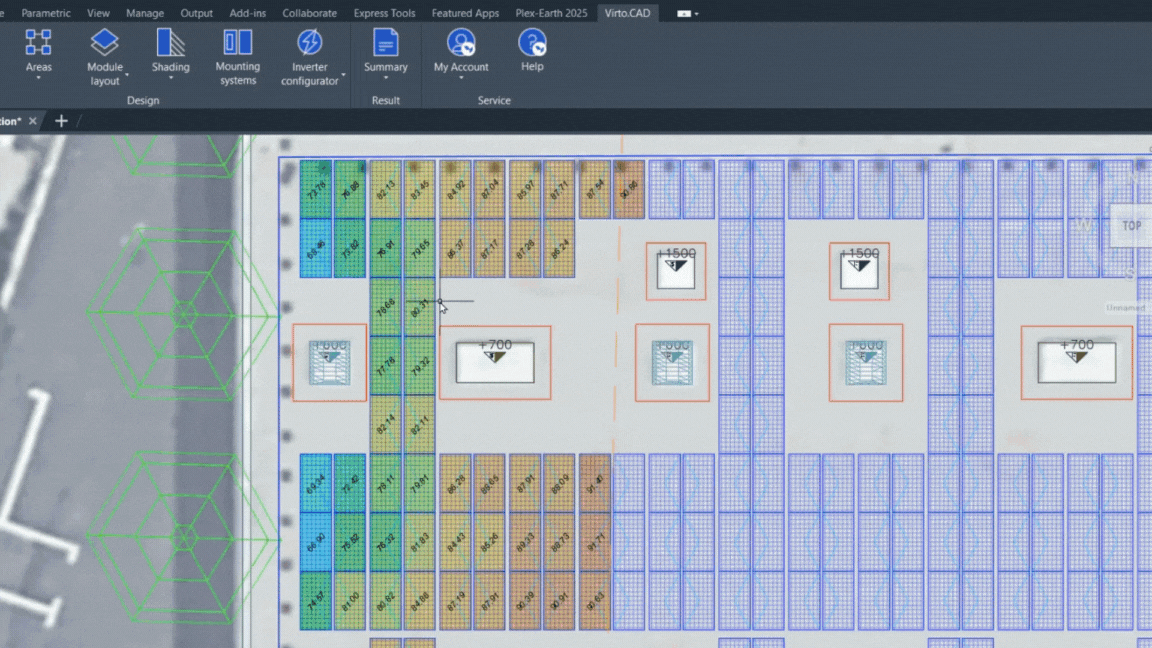

Threshold on Modules
